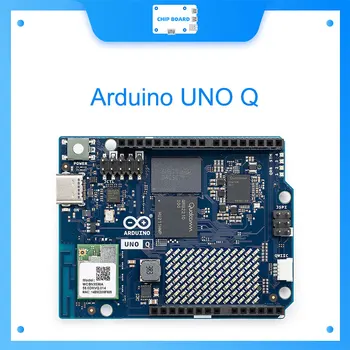

The Arduino UNO Q AI Development Board is very different from the way Arduino boards are usually made. In the past, Arduino boards have been designed to be simple, use little power, and be easy to use for learning about electronics and embedded systems. The UNO Q, on the other hand, tries to connect microcontroller platforms and modern edge AI systems.
The Arduino UNO Q is an AI-capable development board that has more advanced processing hardware than most Arduino boards. It uses a hybrid architecture that combines a microcontroller with a more powerful system-on-chip. This lets you do things like computer vision, voice recognition, and AI applications that are connected to the internet.
This change is part of a bigger trend in embedded systems, where edge devices are expected to do smart processing on their own instead of using cloud services.
This review takes a neutral, in-depth look at the Arduino UNO Q AI Development Board. It looks at its hardware architecture, performance, AI capabilities, development experience, real-world uses, and limitations. The goal is to give you a balanced view that will help you decide if this board is right for you.
PRODUCT COMPARISON TABLE
| Attribute | Arduino UNO Q 2GB AI Development Board | Arduino UNO R4 WiFi | Arduino UNO R4 Minima |
|---|---|---|---|
| Core Architecture | Hybrid (Qualcomm SoC + MCU) | Cortex-M4 + ESP32-S3 | Cortex-M4 |
| RAM | 2GB LPDDR | 32KB SRAM (CPC) | 32KB SRAM |
| Storage | 16GB eMMC | 256KB flash (CPC) | 256KB flash |
| AI Capability | Dedicated AI/vision capable | Lightweight inference | Minimal |
| OS Support | Linux-based + Arduino | Arduino + RTOS | Arduino |
| Connectivity | Wi-Fi, Bluetooth, camera | Wi-Fi, Bluetooth (Arduino Docs) | None |
| Use Case | Edge AI, robotics | IoT, embedded | Basic embedded |
| Complexity | High | Moderate | Low |
| Target User | Advanced developers | Intermediate | Beginners |
Hardware Architecture and Design
The Arduino UNO Q is different from other Arduino boards mainly because it has a hybrid architecture. This board has both a microcontroller unit (MCU) and a more powerful application processor, usually based on a Qualcomm platform. This is different from older designs that only had microcontrollers.
This two-layer design lets the board handle two different kinds of tasks. The microcontroller controls real-time tasks like GPIO control, sensor input, and processes that need to be done on time. The application processor, on the other hand, takes care of more complex tasks like AI inference, image processing, and connecting to the internet.
The board works in a whole new way because it has 2GB of RAM and eMMC storage built in. The UNO Q works more like a small embedded computer than a regular Arduino board, which needs a lot of memory and external storage.
This design lets the board run lightweight Linux-based environments and Arduino-compatible firmware at the same time. This means that developers can use one platform to do both high-level programming and low-level hardware control.
The board is still somewhat compatible with the Arduino UNO form factor, but the extra complexity and parts make it more crowded and less simple than traditional designs.
Performance and Processing Capabilities
Performance is one of the defining characteristics of the Arduino UNO Q.
The presence of a Qualcomm-based processor introduces a level of computational power that is far beyond what typical Arduino boards can achieve. This allows the board to perform tasks such as:
- Real-time image processing
- Object recognition
- Audio processing and voice control
- Multi-threaded applications
Compared to boards like the UNO R4, which rely on microcontrollers optimized for deterministic control tasks, the UNO Q is capable of running more complex and resource-intensive workloads.
However, it is important to understand that while the UNO Q is significantly more powerful than traditional Arduino boards, it does not reach the performance levels of full single-board computers such as Raspberry Pi or dedicated AI platforms like NVIDIA Jetson.
Its performance sits in a middle ground, offering more power than microcontrollers but less than full Linux-based computing platforms.
AI and Machine Learning Capabilities
The primary selling point of the Arduino UNO Q is its AI capability.
Unlike standard Arduino boards, which can only run highly simplified machine learning models, the UNO Q is designed to support more advanced AI workloads. The onboard processor enables hardware acceleration for certain types of neural network operations, making it suitable for edge AI applications.
Typical AI use cases for the UNO Q include:
- Object detection using camera input
- Facial recognition systems
- Voice command recognition
- Gesture detection
- Predictive maintenance in IoT systems
The board’s ability to process data locally reduces latency and enhances privacy, as sensitive data does not need to be sent to the cloud.
However, the AI capabilities are still constrained by hardware limitations. Large-scale models or high-resolution processing may exceed the board’s capabilities, requiring optimization or offloading to more powerful systems.
Memory and Storage Advantages
One of the most significant improvements over traditional Arduino boards is the memory and storage configuration.
With 2GB of RAM, the UNO Q can handle multitasking and more complex applications. This is a major upgrade compared to the kilobyte-level memory found in standard Arduino boards.
The inclusion of 16GB of eMMC storage allows the board to store operating systems, applications, and datasets locally. This eliminates the need for external storage in many cases and improves reliability compared to microSD-based systems.
These features make the UNO Q much more versatile, enabling use cases that were previously impossible on Arduino platforms.
Software Ecosystem and Development Experience
The software experience on the Arduino UNO Q is more complex than traditional Arduino boards.
On one hand, it retains compatibility with the Arduino IDE, allowing developers to write and upload sketches for the microcontroller portion of the system.
On the other hand, the presence of a Linux-based environment introduces new possibilities and challenges. Developers can use languages such as Python, C++, and others to build more advanced applications.
This dual-environment approach provides flexibility but also increases complexity. Developers must manage communication between the MCU and the application processor, which can require additional configuration and debugging.
For beginners, this can be a barrier to entry. For experienced developers, it opens up powerful new capabilities.
Connectivity and Expansion
The Arduino UNO Q offers a comprehensive set of connectivity options.
Wireless connectivity typically includes Wi-Fi and Bluetooth, enabling communication with other devices and cloud services.
Camera support is one of the most important features for AI applications. The board can interface with camera modules for image capture and processing.
GPIO pins allow interaction with sensors, actuators, and other hardware components, maintaining compatibility with traditional Arduino workflows.
Additional interfaces may include USB, UART, SPI, and I2C, providing flexibility for various projects.
Real-World Use Cases
The Arduino UNO Q is best suited for applications that require both embedded control and AI processing.
In robotics, it can handle sensor fusion, navigation, and decision-making tasks.
In smart home systems, it can process voice commands and control devices locally.
In industrial environments, it can perform predictive maintenance by analyzing sensor data in real time.
In education, it can introduce students to both embedded systems and AI development on a single platform.
Pros and Cons
Pros
One of the best things about the Arduino UNO Q is that it has a hybrid architecture that combines the best features of microcontrollers and application processors. This lets developers make complicated systems that need both real-time control and advanced processing.
Its ability to use AI is another big plus. It is not as powerful as dedicated AI hardware, but it is a big step up from regular Arduino boards and makes edge AI applications possible.
The extra memory and storage space open up a lot more project options, making it possible to make more complex applications.
You can run Linux and Arduino firmware at the same time, which gives you more options and access to a lot of software tools.
Cons
The Arduino UNO Q is hard to use, which is its main problem. You need to know more about how to run a hybrid system than you do about regular Arduino boards.
Cost is another problem. The board costs a lot more than regular Arduino models, which might be a problem for beginners and hobbyists.
The AI features are great for an Arduino platform, but they aren’t as good as those on dedicated AI boards. This could cause performance problems in applications that need a lot of power.
Also, the power usage is higher than that of regular Arduino boards, which might be something to think about for projects that run on batteries.
Performance in Practical Scenarios
In real-world use, the Arduino UNO Q performs well in applications that combine sensing, control, and AI processing.
For example, in a smart camera system, it can capture images, process them locally, and trigger actions based on detected objects.
In voice-controlled systems, it can process audio input and execute commands without relying on cloud services.
However, performance may degrade when handling multiple high-resolution streams or large AI models, highlighting the importance of optimization.
Neutral Verdict
From a neutral standpoint, the Arduino UNO Q represents an innovative step forward for the Arduino ecosystem.
It successfully expands the capabilities of Arduino boards into the realm of edge AI and embedded computing. However, it also introduces complexity and cost that may not align with the needs of all users.
The board is best suited for developers who require a balance between embedded control and AI processing, rather than those seeking a simple or low-cost platform.
Conclusion
The Arduino UNO Q AI Development Board is a cutting-edge platform that changes the way we think about Arduino boards. It lets you do a new kind of project that you couldn’t do before by combining the simplicity of a microcontroller with the processing power of an application.
It doesn’t replace high-end AI platforms, but it does fill an important need in the world of embedded systems. It is good because it is flexible, easy to integrate, and has some AI capabilities.
The UNO Q is a powerful and flexible platform for building smart edge devices, but only if developers are willing to deal with its complexity.
