The LattePanda Sigma is one of the most ambitious projects in the world of single-board computers. It pushes the limits of what these small systems can do. The Sigma uses a modern Intel Core processor and a full x86 architecture, which is different from most SBCs that use ARM-based processors. This change changes the way the device is positioned at its core, putting it somewhere between a maker board, a mini PC, and an edge computing platform.

The LattePanda Sigma is made for developers, engineers, and hobbyists who need desktop-level performance in a small package. It aims to provide high processing power while keeping the flexibility and hardware accessibility that single-board computers are known for. It is sold as a “single-board server” or “maker desktop,” which shows that it can be used in many different ways.

This review looks at the LattePanda Sigma from a neutral point of view, looking at its hardware design, performance, software ecosystem, real-world uses, and problems. It has some great features, but it also comes with some trade-offs that need to be carefully thought about based on how you plan to use it.

Design and Physical Characteristics

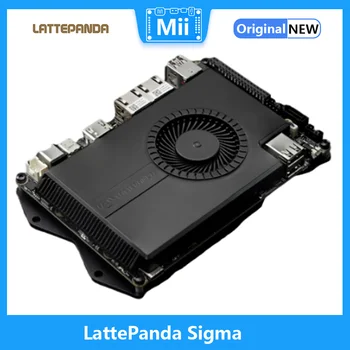

The LattePanda Sigma is much bigger than the usual small SBCs. It is much bigger than most boards, like the Raspberry Pi, and even bigger than some small mini PC motherboards. It measures about 146 x 102 mm.

The bigger size is directly linked to the better hardware it has. The board has a big cooling system with an active heatsink and fan assembly that can handle the heat from its powerful processor. Adding a metal baseplate helps to spread out the heat even more and makes the structure as a whole more rigid.

The way the ports and connectors are laid out shows that they are meant to be flexible. The board has HDMI output, USB ports, Ethernet connectivity, and expansion ports like M.2 slots and GPIO pins. It stands out because it combines traditional PC-style connections with maker-oriented ones, making it possible to connect desktop computers and embedded systems.

The build quality is generally good, but the larger size and more complicated cooling system make it less suitable for projects that need to be very small or that don’t have a lot of space. This design choice puts performance and functionality ahead of minimalism.

Hardware Specifications and Architecture

The most important part of the LattePanda Sigma is the Intel Core i5-1340P processor. This is a 13th-generation Raptor Lake chip with 12 cores and 16 threads. The processor has both performance cores and efficiency cores, which means it can do a lot of work without using a lot of energy.

In turbo mode, the performance cores can go up to 4.6 GHz. The efficiency cores, on the other hand, work at lower frequencies to speed up background tasks. This design lets the board handle a lot of work while still being able to do everyday tasks.

LPDDR5 RAM is the memory that can hold up to 32 GB of data. High-speed memory makes it much easier for the system to do many things at once and move data quickly. This makes it great for hard jobs like virtualising, making software, and processing data.

The graphics are handled by Intel Iris Xe integrated graphics. They work with modern APIs and are fast enough for multimedia, light gaming, and graphical apps.

Users can install high-speed solid-state storage because it works with both M.2 NVMe and SATA drives.This flexibility makes sure that the system can be set up to meet different needs for performance and capacity.

The board also has a microcontroller built in, so you can use it with Arduino-based projects and get direct access to hardware interfaces. This integration makes it more interesting for prototyping and developing hardware.

Performance Analysis

The LattePanda Sigma’s main feature is its performance. It works at a whole new level compared to traditional SBCs, giving you processing power that’s on par with modern laptops and entry-level desktops. Benchmark tests show that its CPU performance is on par with or better than that of some older desktop processors. This shows that it can be used as a compact computing platform.

The Sigma is great for tasks like compiling software, running multiple programs at once, and virtualisation in the real world. Because it has multiple cores, it can handle multiple tasks at once quickly. This makes it good for server applications and development environments.

The system also works well with multimedia, like playing and encoding videos. The built-in GPU can handle high-resolution displays and hardware acceleration, which lets you play high-definition content smoothly.

But the high level of performance means that the device uses more power. When the system is under load, it can use between 45 and 60 watts, with short spikes during heavy tasks. This is a lot higher than what most SBCs can handle, which is usually much lower power ranges.

The onboard cooling system does a good job of managing heat, but the need for active cooling makes things more complicated and noisy. It is not completely silent, but it is quieter than some systems.

Software Ecosystem and Compatibility

The x86 architecture of the LattePanda Sigma is one of its best features because it lets it run regular desktop operating systems like Windows and Linux. This gives you access to a huge number of software programs, including some that don’t work on ARM-based platforms.

Using a standard UEFI BIOS makes compatibility even better, allowing users to install operating systems and set up the system in a way that is similar to how a regular PC works.

The Sigma is especially appealing to developers and professionals who need to use certain tools or environments because it is so compatible. It also makes it easier to add the board to current workflows.

But the software experience might be different depending on the operating system and how it is set up. Even though compatibility is broad, optimising for this specific hardware may not always work perfectly, especially in niche applications.

Connectivity and Expansion

The LattePanda Sigma has a lot of ways to connect to other devices, which shows that it is a flexible computing platform. It has high-speed networking features, such as support for multiple Ethernet interfaces and advanced wireless connectivity options.

Multiple M.2 slots make it easy to add storage, wireless modules, or other peripherals, which makes expansion easier. Thunderbolt ports make it possible to connect external GPUs, storage devices, and displays, which opens up even more configuration options.

The board can also output to more than one display, which makes it good for setups with more than one monitor and advanced visualisation software.

This level of connectivity is rare in the SBC space, which makes the Sigma a very flexible platform for both development and deployment.

Real-World Use Cases

The LattePanda Sigma can be used for a lot of different things. In development environments, it acts as a small workstation that can run complicated software and development tools. Its speed makes it good for things like compiling code, running virtual machines, and testing apps.

The Sigma can work as a home server or an edge computing node in server situations. It can host services, process data, and control network traffic, among other things. It can handle workloads that would be hard for regular SBCs because it is so fast.

The board can be a media center or streaming device for multimedia apps. It can play high-resolution videos and send them to more than one display.

When developing hardware, combining a microcontroller with GPIO interfaces lets you connect to sensors and other devices, which makes it great for prototyping and IoT projects.

Pros

There are a lot of good things about the LattePanda Sigma. In the SBC category, it has the best performance, giving you desktop-level computing power in a small package. This means it can handle tough tasks that need a lot of processing power.

The x86 architecture makes sure that a lot of software works with it, so users can run standard operating systems and apps without the problems that come with ARM-based platforms.

There are many ways to connect and grow, which makes it useful for a lot of different situations. It is more flexible because it has high-speed networking, multiple display outputs, and expansion slots.

Adding a microcontroller makes hardware development more valuable because it lets external parts work together without problems.

Cons

The LattePanda Sigma has some problems, even though it is a good product. The most important thing is that it costs a lot more than most SBCs. This could make it harder to get to and less appealing to people who are on a tight budget.

Another problem is that the system uses a lot more power than most SBCs. This could be a problem for applications that use batteries or are energy-efficient.

Because it is bigger and has an active cooling system, it is not as good for small or quiet deployments. These things might make it less useful in some embedded or portable situations.

Also, while the performance is great, it might be similar to what mini PCs can do, which can offer similar or better performance with better designs and upgrade options.

Overall Assessment

The LattePanda Sigma is a big step forward for single-board computers, pushing the limits of performance and features. It successfully combines the power of modern desktop processors with the flexibility of SBCs to make a unique platform for advanced users.

But there are costs that come with its strengths. It is different from other SBCs because it is more expensive, uses more power, and is bigger. This could make it less appealing for some uses.

The Sigma is a great choice for people who need a small system that can do a lot of things and perform at its best. For people who don’t need as much, cheaper and more energy-efficient options might be better.

Conclusion

The LattePanda Sigma is one of the most powerful and useful single-board computers on the market right now. It has a lot of different uses because it has powerful hardware, a lot of ways to connect to other devices, and a lot of software that works with it.

At the same time, its limits in terms of cost, power use, and size show how hard it is to find a balance between performance and practicality. Because of this, it has a niche market and is mostly useful for people who can fully use its features.

The LattePanda Sigma is not a universal replacement for traditional SBCs or a direct competitor to standard desktop systems, at least not from a neutral point of view. Instead, it is a hybrid solution that connects these two worlds, offering unique benefits but also requiring careful thought about its trade-offs.
