Many people think that the Radxa Rock 5B is one of the most powerful single-board computers (SBCs) on the market for hobbyists and developers. It is a new generation of ARM-based boards built around the Rockchip RK3588 processor. Its goal is to bridge the gap between traditional SBCs and full desktop-class computing.
The Rock 5B is different from older SBCs because it focuses on performance, scalability, and flexibility instead of being simple and cheap. It is aimed at developers, engineers, and advanced users who need more computing power than what most boards, like the Raspberry Pi, can give them.
But as performance goes up, so does complexity. The Rock 5B is not always a plug-and-play solution, and how easy it is to use depends a lot on how much technical experience the user has.
This review gives a thorough, unbiased look at the Radxa Rock 5B, including its hardware design, performance, AI features, software ecosystem, real-world uses, and drawbacks.
PRODUCT COMPARISON TABLE
| Attribute | Radxa Rock 5B Model B RK3588 SBC | Rock 5 Model B 8GB SBC | Radxa Rock 5B SBC |
|---|---|---|---|
| CPU | RK3588 (4x A76 + 4x A55) | RK3588 | RK3588 |
| RAM Options | 4GB / 8GB / 16GB LPDDR4X | 8GB | Up to 16GB |
| GPU | Mali-G610 | Mali-G610 | Mali-G610 |
| AI Acceleration | ~6 TOPS NPU | ~6 TOPS | ~6 TOPS |
| Storage | NVMe + eMMC + microSD | NVMe + microSD | NVMe + microSD |
| Video Output | 8K + 4K dual display | 8K capable | 8K capable |
| Connectivity | USB 3.0, Ethernet, GPIO | Similar | Similar |
| OS Support | Linux, Android | Linux, Android | Linux, Android |
| Target Use | AI, development, servers | General high-performance | Development |

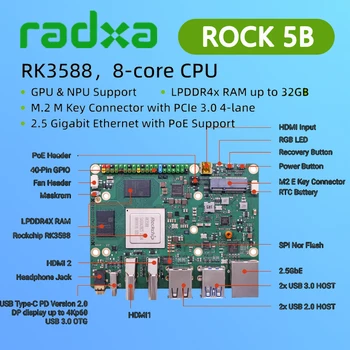

Hardware Architecture and Design
The Radxa Rock 5B is built around the Rockchip RK3588 system-on-chip, a modern 8-core processor combining four Cortex-A76 high-performance cores and four Cortex-A55 efficiency cores. This architecture allows the board to dynamically allocate resources depending on workload, balancing performance and energy efficiency.
The board itself follows a compact SBC form factor, measuring approximately 100 x 75 mm, while still incorporating a wide range of features and interfaces. ([docs.radxa.com][2]) Despite its relatively small size, it manages to integrate advanced connectivity options such as PCIe 3.0, M.2 storage support, dual HDMI outputs, and multiple USB ports.
One of the standout aspects of the hardware design is its emphasis on expandability. Unlike simpler SBCs, the Rock 5B supports:
- NVMe SSDs via PCIe
- eMMC storage modules
- Multiple display outputs
- High-speed networking
This level of flexibility allows it to function as more than just a development board. It can be adapted into a workstation, server, or embedded system depending on the user’s needs.
Thermal management is also an important consideration. The RK3588 is a powerful chip, and under heavy workloads, the board can generate significant heat. Active cooling solutions such as heatsinks or fans are often required to maintain stable performance.
Performance and Processing Power
Performance is arguably the defining feature of the Rock 5B.
The RK3588 processor provides a level of computing power that far exceeds traditional SBCs. In multi-core workloads, it significantly outperforms boards like Raspberry Pi 5, making it suitable for demanding tasks such as:
- Software development and compilation
- Virtualization and containerization
- Multimedia processing
- Multi-service hosting
Benchmarks and real-world tests consistently show that the Rock 5B ranks among the fastest SBCs available, with some reviewers describing it as one of the top-performing boards in its class. ([James A. Chambers][3])
The Mali-G610 GPU further enhances performance by enabling hardware-accelerated graphics and video processing. This allows the board to handle high-resolution video playback, including 8K output, as well as GPU-assisted workloads. ([SB Components Ltd][4])
In practical use, the Rock 5B behaves more like a compact desktop system than a typical SBC. It is capable of running full desktop environments, development tools, and even lightweight virtual machines.
AI and Machine Learning Capabilities
The inclusion of a dedicated Neural Processing Unit (NPU) is one of the key features that sets the Rock 5B apart.
With approximately 6 TOPS of AI performance, the NPU enables efficient execution of machine learning inference tasks. This makes the board suitable for applications such as:
- Object detection and tracking
- Facial recognition
- Speech processing
- Edge AI analytics
While the NPU provides a significant advantage over CPU-only systems, it is important to note that the Rock 5B is not a replacement for high-end AI hardware. It is designed for inference rather than training, and large models may require optimization.
Nevertheless, for edge computing scenarios where low latency and local processing are critical, the Rock 5B offers a compelling solution.
Memory and Storage
Memory and storage are areas where the Rock 5B excels.
The board supports LPDDR4X memory in configurations ranging from 4GB to 16GB, providing sufficient capacity for multitasking and memory-intensive applications. ([wiki2.radxa.com][5])
Storage options are particularly strong, with support for:
- NVMe SSDs via PCIe 3.0
- eMMC modules
- microSD cards
The inclusion of PCIe 3.0 x4 NVMe support is especially noteworthy, as it allows for significantly faster storage speeds compared to traditional SBCs. ([bret.dk][6])
This makes the Rock 5B suitable for applications that require high-speed data access, such as:
- Databases
- Media servers
- AI pipelines
Software Ecosystem and Usability
The software ecosystem is one of the more complex aspects of the Rock 5B.
The board supports multiple operating systems, including various Linux distributions and Android. However, the level of polish and support can vary depending on the OS and use case.
Compared to platforms like Raspberry Pi, the Rock 5B has:
- Less mature documentation
- Smaller community support
- More fragmented software ecosystem
Some users report that while the experience has improved over time, documentation and setup processes can still be challenging, particularly for beginners. ([emteria.com][7])
Despite these challenges, the board has gained a reputation among advanced users as a capable and flexible platform, with ongoing improvements in kernel support and community contributions. ([NixOS Discourse][8])
Connectivity and Expansion
The Rock 5B offers a wide range of connectivity options, making it highly versatile.
Key features include:
- Dual HDMI outputs supporting up to 8K resolution
- Gigabit or higher-speed Ethernet
- USB 3.0 ports
- MIPI camera interfaces
- GPIO pins for hardware interaction
The presence of PCIe expansion further enhances its capabilities, allowing users to connect high-speed storage and other peripherals.
However, wireless connectivity is not always built-in and may require additional modules, which can add to the overall cost and complexity.
Real-World Use Cases
The Rock 5B can be used for a lot of things, especially ones that need high performance.
It can be a small workstation for coding, testing, and deployment in development environments.
It can host web services, databases, and file systems on servers very well.
It can work as a high-performance media center that can handle 4K and 8K content in media applications.
It can process data locally in edge computing, which lowers latency and makes it more responsive.
It is popular with both professionals and hobbyists because it can do so many things.
Pros and Cons
Pros
The performance of the Rock 5B is one of its best features. The RK3588 processor has great multi-core performance, which makes it one of the fastest SBCs on the market.
Adding support for NVMe storage makes the system much more responsive and easy to use.
The NPU gives AI useful features that make edge computing apps work better.
The board is very flexible because it has a lot of ways to connect and grow.
Cons
The software ecosystem is the main problem. It doesn’t have the same level of polish and ease of use as more established platforms.
It can be hard to learn, especially for people who don’t know much about Linux or embedded systems.
Not all of them come with wireless connectivity, which means you need extra hardware.
It costs more than many other SBCs, which may make it less appealing to people who are on a tight budget.
Performance in Practical Scenarios
The Rock 5B works very well in the real world for tasks that require a lot of computing power and multiple threads.
It can run several apps at the same time without a big drop in performance.
It works quickly and reliably for servers, especially when paired with NVMe storage.
It works well for AI workloads, especially for lightweight models, as long as its NPU isn’t too full.
However, users should be ready for problems with the software from time to time, especially when using new features.
Neutral Verdict
The Radxa Rock 5B is a high-performance SBC that stands out for its hardware capabilities and flexibility, even from a neutral point of view.
It is best for people who care about performance and are okay with using software that isn’t fully developed yet.
It might not be the best choice for beginners or people who want a simple, plug-and-play experience.
Conclusion
The Radxa Rock 5B is a big step forward for single-board computers. It is one of the best SBCs on the market because it has a powerful processor, advanced features, and is flexible.
But it does have some problems. Some users may find it hard to use because of the software ecosystem and the learning curve.
In the end, the Rock 5B is a great choice for developers and fans who need speed and are ready to deal with its difficulties.
